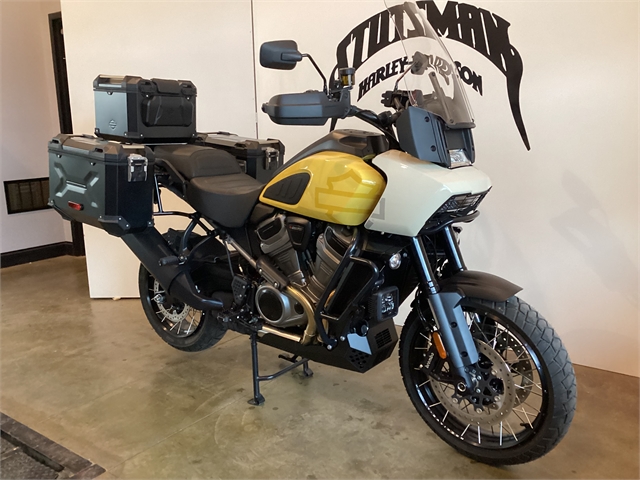

2023 Harley-Davidson Pan America 1250 Special

Stock #23005
DSRP: $23,079 USD
Check Availability Hi, my name is and I'm interested in this 2023 Harley-Davidson Pan America 1250 Special . I'm in the area and you can reach me at or on my phone at .




  • Status:
    New
  • Vehicle:
    2023 Harley-Davidson Pan America 1250 Special
  • VIN:
    1HD1ZES10PB300695
  • Model Number:
    RA1250S
  • Mileage:
    362 miles
  • Color:
    INDSYLW/WHT SND
  • Stock Number:
    23005
  • Title:
    Clear
  • Location:
    Stutsman Harley-Davidson
  • Warranty:
    Manufacturer's w/ Extended Available

AUDIO & COMMUNICATION

  • Bluetooth® Audio:
    Yes
  • Mobile App Instrumentation:
    Yes

BRAKES

  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

CONVENIENCE

  • Engine Immobilizer Brand:
    Digitally Encoded Security System™ (DESS)
  • Heated Hand Grip Location:
    Driver

ENGINE

  • Bore (in):
    4.13
  • Bore (mm):
    105
  • CAN Liters Per Kilometer (Combined):
    5.1
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    13
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    1252
  • Displacement (ci):
    76.4
  • Engine Brand Name:
    Revolution® Max
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    150
  • Horsepower (kW):
    112
  • Horsepower RPM:
    9000
  • Starter:
    Electric
  • Stroke (in):
    2.84
  • Stroke (mm):
    72.3
  • Torque (Ft Lbs):
    94
  • Torque (Nm):
    127
  • Torque RPM:
    6750
  • US Miles Per Gallon (Combined):
    46
  • Valve Configuration:
    DOHC

EXTERIOR

  • Brush Guard:
    Yes
  • Chain Guard:
    Yes
  • Engine Case Guard:
    Yes
  • Foot Peg Location:
    Driver and Passenger
  • Fork Guards:
    Yes
  • Frame:
    Steel
  • Hand Guards:
    Yes
  • Light Guard:
    Yes
  • Stand Type:
    Center

GLASS

  • Folding:
    Yes
  • Height Adjustable:
    Yes
  • Height:
    High
  • Tinted:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    LED

SEATS

  • Number Of Seats:
    2
  • Seat Location:
    Driver and Passenger
  • Seat Type:
    Two-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Brand Name:
    Showa® BFF
  • Front Suspension Size (in):
    47
  • Front Suspension Size (mm):
    1193.8
  • Front Suspension Type:
    Inverted Fork
  • Front Travel (in):
    7.5
  • Front Travel (mm):
    190
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Brand Name:
    Showa® BFRC
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Steering Damper:
    Yes

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    242
  • Dry Weight (lbs):
    534
  • Engine Displacement to Weight (cc):
    2.37
  • Fuel Capacity (gal):
    5.6
  • Fuel Capacity (l):
    21.2
  • Ground Clearance (in):
    6.9
  • Ground Clearance (mm):
    175.3
  • Length (ft):
    7.45
  • Length (ft/ft):
    7
  • Length (ft/in):
    5.4
  • Length (in):
    89.4
  • Length (mm):
    2270
  • Wet Weight (kg):
    258
  • Wet Weight (lbs):
    569
  • Wheelbase (in):
    62.4
  • Wheelbase (mm):
    1585

TRANSMISSION

  • Gear Ratio (1):
    13.11
  • Gear Ratio (2):
    9.687
  • Gear Ratio (3):
    7.509
  • Gear Ratio (4):
    6.057
  • Gear Ratio (5):
    5.08
  • Gear Ratio (6):
    4.436
  • Number Of Speeds:
    6
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Michelin® Scorcher™ Adventure 120/70 R19 60V
  • Front Tire Aspect Ratio:
    70
  • Front Tire Speed Rating:
    V
  • Front Tire Width:
    120
  • Front Wheel Diameter:
    19
  • Rear Tire (Full Spec):
    Michelin® Scorcher™ Adventure 170/60 R17 72V
  • Rear Tire Aspect Ratio:
    60
  • Rear Tire Speed Rating:
    V
  • Rear Tire Width:
    170
  • Rear Wheel Diameter:
    17
  • Tire Brand:
    Michelin®
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Aluminum
